High Accuracy Industrial Electronic Weighing Indicator Dust Proof Material Level
High Accuracy Industrial Electronic Weighing Indicator Dust Proof Material Level
Specifications
Brand Name :
SUPMETER
Model Number :
BST106-C21
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiating
Payment Terms :
T/T, Western Union
Supply Ability :
500pcs/month
Delivery Time :
5-15 workingdays
Packaging Details :
carton box
Power Supply :
AC220V/DC24V
Max connect :
8Loadcells
Open Swith Input :
3DI
Open Repay Output :
4DO
Protection level of front panel :
IP65
Description
Product Description

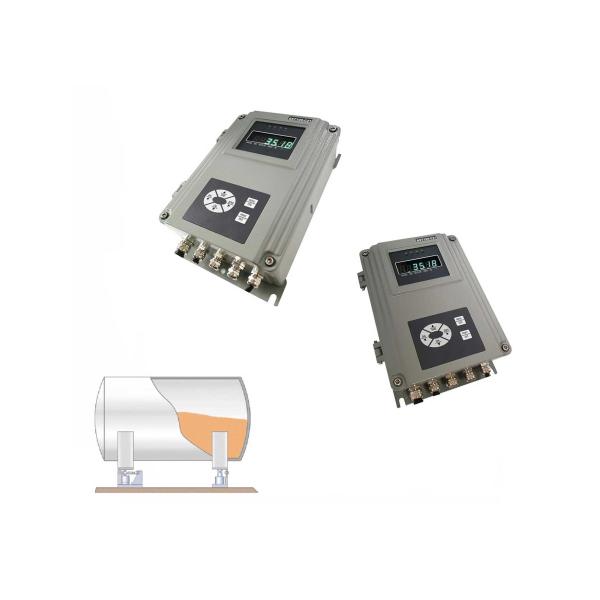

High-accuracy Wall-mounting Industrial dust proof material level weighing controller indicator

Main Features

EMC design with high anti-jam for industrial environment.

6 LED/VFD digital tubes for English&digit display.

64-segment LED for percent display.

24-bit ∑-△ADC with internal resolution 1/1,000,000.

High sampling frequency 200Hz.

Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.

Auto Zero Tracking.

Load Calibration &, Data Calibration.

The Weighing Record can be printed.

Definable AO/COM[Communication Port].

Technical Specifications:

Power Supply: AC220V±15%, 50/60Hz, Max. 10W.

Loadcell Excitation Voltage/Current: DC10V/250mA.

8 Loadcells[350Ω] connectable.

Weighing Signal Input Range: 0~25mV.

3 Normally Open Switch Inputs [DI].

4 Normally Open Relay Outputs [DO]: AC250V/DC24V, 1A.

1 Analog Signal Output [AO]: 4~20mA, 0.05%FS.

Accuracy Grade: III.

COM1: Fixed RS232&RS485. Free to use one of them.

COM2: Optional RS232/RS485/RS422/Profibus-DP/Ethernet.

Connect Host IPC, Remote Display, Printer&Wireless Module.

Outline Size [W×H×D]: 160 × 84 × 188 mm.

Panel Cut-out Size [W×H]: 151 × 76 mm.

Operating Temperature: -25℃~+45℃.

Protection Level of Front Panel: IP65.

Verification Accuracy: 0.02%.

Static Weighing Accuracy: 0.2%~0.5%.

Demension

 Outline Size: 202×305×90mm [W×H×D]

 Mounting Size: 169×271mm [W×H]

Mounting Hole Size: Ф9mm.

Menu Operation

Key Name
Description
[MENU]
[ESC]
([LOCK])
Enter Main Menu.
Exit.
Keep it pressed for 2 seconds: Key-locking / Key-unlocking.
[ENT]
Enter/Save/Alarm Acknowledge.
[◄]
Cursor shifts left.
[►]
Cursor shifts right.
[▲]
Display the previous option.
Digit input: +1.
[▼]
Display the next option.
Digit input: -1.
[G/N]
APL0 Hopper Weighing Mode: Gross Weight / Net Weight display switch.
APL1 Ration Feeding/Batching Mode: Gross Weight / Net Weight / Feeding Weight display Switch.
[A./b./c.]: Feeding Weight of Material M1/M2/M3.
[t.]: Total Feeding Weight.
[ZERO]
[-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
[≡ZEro≡]: Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight.
The controller will switch to Gross Weight display.
[TARE]
[≡tArE≡]: Manual Tare without Power-down Protection.
[-PStr-]: Preset Tare Weight with Power-down Protection.
[-rStr-]: Clear Tare Weight with Power-down Protection.
The controller will switch to Net Weight display.
[CAL]
[-LoAd-]: Load Calibration.
[▲][▼]*
* Keep it pressed for 2 seconds: Setpoint parameters setting.
[PRINT]
Print Weighing/Batching Report.
