Rs232 Or Rs485 Communication Belt Scale Controller With Zero Calibration
Rs232 Or Rs485 Communication Belt Scale Controller With Zero Calibration
Rs232 Or Rs485 Communication Belt Scale Controller With Zero Calibration
Rs232 Or Rs485 Communication Belt Scale Controller With Zero Calibration
Specifications
Brand Name :
Supmeter
Model Number :
BST100-A11
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
negotiation
Payment Terms :
Western Union, T/T
Supply Ability :
10000pcs/month
Delivery Time :
3workdays
Packaging Details :
one pc per carton
Power supply :
AC220V
DO :
4
Accuracy Grade :
0.5
DI :
3
Communication Port :
COM1:Optional RS232/RS485/RS422/ Profibu-DP/Ethernet; COM2:RS485
Description

Rs232 Or Rs485 Communication Belt Scale Weigh Feeder Controller With Zero Calibration

Technical Specification

  • Power Supply: AC220V±15%, 50/60Hz, Max. 15W.
  • Loadcell Excitation Voltage/Current: DC10V/250mA.
  • 8 Loadcells[350Ω] connectable.
  • Weighing Signal Input Range: 0~25mV.
  • Speed Sensor Excitation Voltage/Current: DC12V/100mA.
  • Speed Signal Input Range: 0.5~3000Hz.
  • 3 Normally Open Switch Inputs [DI].
  • 4 Normally Open Relay Outputs [DO]: AC250V/DC24V, 1A.
  • 1 ‘Totalized Weight’ Pulse Output [PO]: DC5~24V, 100mA.
  • 2 ‘PID Control’ Analog Output [AO]: 4~20mA, 0.05%FS.
  • 1 ‘Flow Set’ Analog Input [AI]: 4~20mA, 0.05%FS.
  • COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet.
  • COM2: RS232.
  • Connect Host IPC, Remote Display, Printer&Wireless Module.
  • Outline Size [W×H×D]: 164 × 82 × 188 mm.
  • Panel Cut-out Size [W×H]: 153 × 77 mm.
  • Operating Temperature: -25℃～+45℃.
  • Protection Level of Front Panel: IP65.
  • Accuracy Grade: 0.5.
  • Accuracy of Flow Control: 0.5%~1.0%.

Main Features
  •  EMC design with high anti-jam for industrial environment.
  •  32-bit ARM CPU with 72MHz clock & high arithmetic speed.
  •  128×64 LCD display screen with 7 background colors.
  •  4+4 Red LED digital tubes for digit display.
  •  24-bit Σ-△ADC with internal resolution 1/1,000,000.
  •  High sampling frequency 400Hz.
  •  Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
  •  Zero Calibration & Auto Zero Tracking.
  •  Span Calibration & Segmenting Correction.
  •  Speed Calibration & Belt Length Calibration.
  •  The feeder and belt weigher can be controlled by DI&DO.
  •  Quick and steady PID ration feeding control.
  •  Queryable Records per shift/day/month of a year.
  •  Definable DI/DOAO/COM[Communication Port].

Rs232 Or Rs485 Communication Belt Scale Controller With Zero Calibration

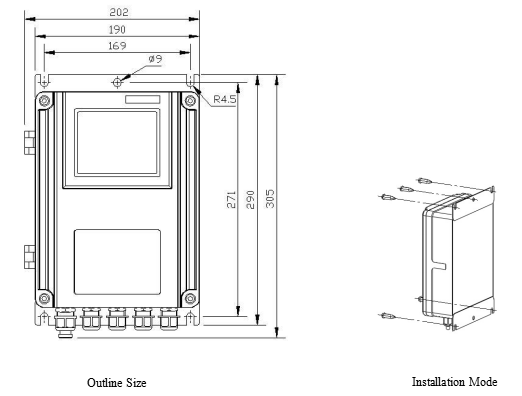

Model Panel-mounting Installation

Rs232 Or Rs485 Communication Belt Scale Controller With Zero Calibration

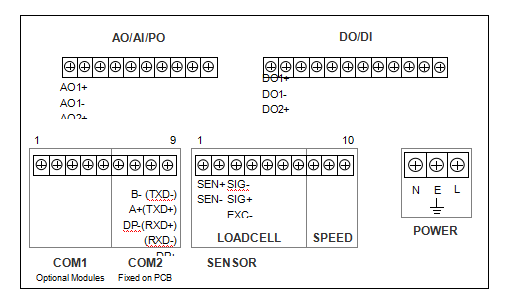

Model Panel-mounting Terminal

Rs232 Or Rs485 Communication Belt Scale Controller With Zero Calibration

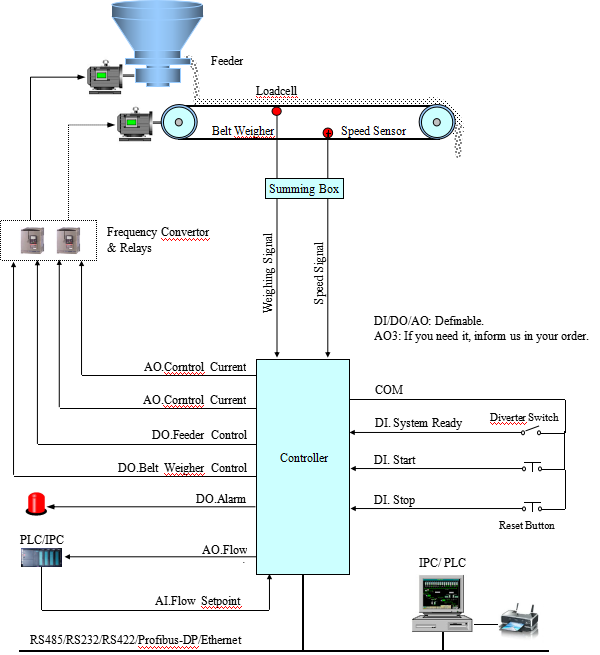

Ration Flow Auto-Feeding System:

Rs232 Or Rs485 Communication Belt Scale Controller With Zero Calibration

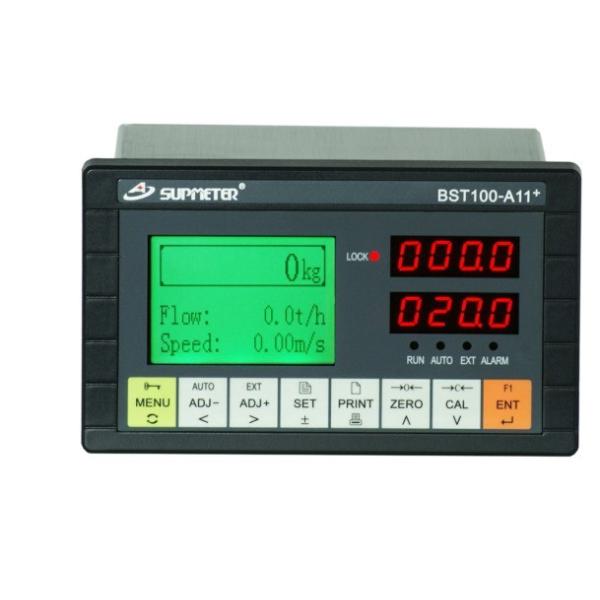

Display Interfaces

The Numeric Display 1 displays Totalized Weight value and the Numeric Display 2-3 displays the following data:

NO. Display iterms Sign Range
6 Totalized Weight of Current Batch P= 0~999999
7 AD Value Ad= 0~65535
8 Zero Value Zr= 0~60000
9~11 DI State dI1-/dI2-/dI3- -oFF/-on-
12~15 DO State do1-/do2-/do3-/do4- -oFF/-on-
16 AI Signal AI1= 4.00~20.00mA
17~19 AO Signal Ao1=/Ao2=/Ao3= 4.00~20.00mA
20 Totalized Weight High Speed Pulse HP 0~999999 Pulse
21 Totalized Weight Low Speed Pulse LP 0~999999 Pulse
22 Date 20YY.MM.DD Year. Month. Day
23 Time HH.MM.SS-W Hour. Minute. Second-Week
24 Totalized Weight of Current Shift t= 0~99999.9t
