Relay Switch Output And Analogue Output Belt Weighfeeder Weighing Module
Relay Switch Output And Analogue Output Belt Weighfeeder Weighing Module
Specifications
Brand Name :
SUPMETER
Model Number :
BST100-M11JD
Place of Origin :
China
MOQ :
10
Price :
Negociation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
1000pcs/month
Delivery Time :
5-15 working days
Packaging Details :
carton Box
Relative Humidity :
Max. 85%RH
COM1 :
RS485
CANBUS :
NONE
Analogue Output :
1* (4~20mA)
1*DO :
AC250V/DC24V, 1A
Operating Voltage :
DC15~24V, 3W
Description

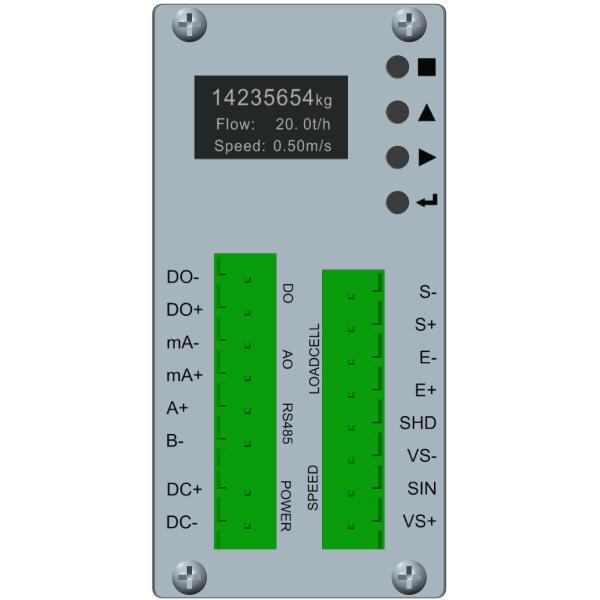

Relay Switch Output And Analogue Output Belt Weighfeeder Weighing Module

BST100-M11JD is Similar to BST100-M11JC. But it is without CAANBUS communication, it is with relay switch output. Please pay attention to the difference between them and choose the one you want .

Relay Switch Output And Analogue Output Belt Weighfeeder Weighing Module

BST100-M11JD/JC can be connect with IPC/PLC, LED Remote Display and Wireless Module

Operating Specification

  • Operating Voltage: DC15~24V.
  • Max. Power Consumption: 3W.
  • Outline Size: 45.5×92.0×107.3mm [W×H×D].

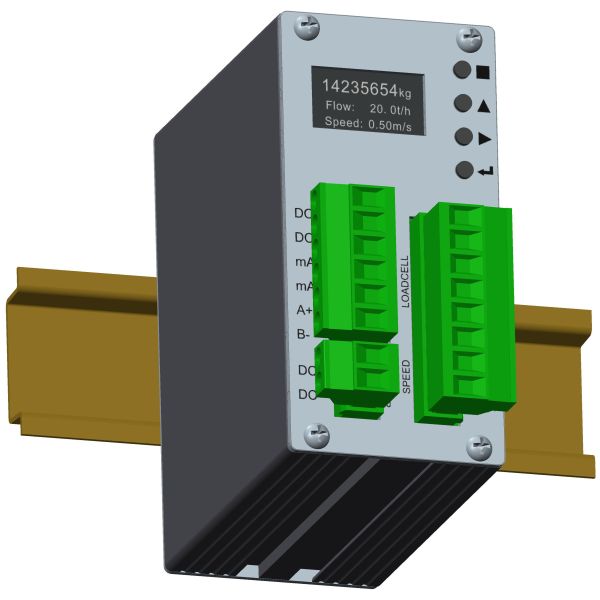

  • Guide rail type installation.
  • Guide Rail Groove Size: 35×1.6 mm [W×D].
  • Operating Temperature: -25℃ to +45℃.
  • Storage Temperature: -30℃ to +60℃.
  • Relative Humidity: Max. 85%RH.
  • Weight: Approx. 265g.

Display

  • 128×64 White or blue 0.96” OLED display screen for English display.
  • Display Refreshing Time: Setting Range 0.1~2.0s.
